Good Service Prefab Steel Structure Workshop

Qingdao XinmaoZT Steel Construction Co., Ltd.

Staff:486 people, 40 engineers, 12 designers, 25 professional engineering and technical personnel.Area :More than 50000 sqm .Product Capacity :5000 TON per monthService :We offer design, product, installation one-stop service,we also can send our experienced Engineers to your country to guide construction

Item		Specification
Main Steel Frame	Column	Q235, Q345 Welded H Section Steel
	Beam	Q235, Q345 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe

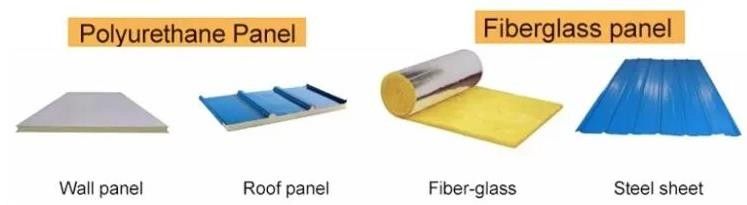

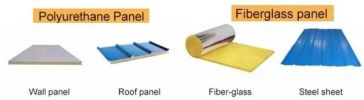

Maintenance system	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel /
		Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
	Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
	Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
	Rainspout	PVC
Live load on Roof		In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade		12 Grades
Earthquake-resistance		8 Grades
Structure Usage		Up to 50 years
Finishing Options		Vast array of colors and textures available
Paint Options		Alkyd paiting, two primary painting, two finish painting
		(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

Oversea projects we undertook in the last few years:Industrial Warehouse (13000 M2 )-Argentina Warehouse (14000M2)---- Republic of Uzbekistan Workshop (12000M2)----Canada Roof Truss(10000M2)--- Congo Vegetable Market(2500M2)---- Mauritius Pig shed(3500M2)---USA Chicken shed(2800M2)-Australia Aircraft Hangar(1300M2)------Australia Warehouse(900M2)---- Mongolia Prefabricated house(70M2)----800 sets---Angola Container house(20)-----60 sets-South AfricaSteel frameAll the steel columns and beams will be packed and sticked to the steel pallets to load into the shipping Container, which will also save the energy and cost of unloading at the site.Weight.Around 20 tons per 40HQ shipping containerWall&Roof sandwich panelsWith films on two sides to protect the sanwich panels from the crashing during the loading and transportation.

RFQ Q1.How about your payment term? A: Both TT and L/C will be accepted. 30% deposit before producing and 70% balance before loading by TT will be more preferred Q2. How about your delivery time? A: It depends on order quantities. Noramlly, the delivery time will be 45 days after getting the deposit. Q3. How to make the packing? A: The steel frames will be packed by pallets first, then loading them into the shipping container, which will be easy to unload at the site and save the cost for you. All the ends will be packed by the blankets or bubble plastic films. The sandwich panels will also be packed first. Q4. Can you provide the installation help? A: Yes. We can provide you all the drawing by Tekla model, then you can check each part vividly at the site. The installation drawing will also be provided. For some special parts, we can send you the vedio installation guidance. If for some difficult part, we can send our engineers there for installation guidance. If you need, the workers can also be help there. But the cost for them, including the turn-round airplane tickets, accommodation cost at the site, etc. will be born by you there. Requirement: --------------------------------------------------------------------------------------------------- 1. Width__________M 2. Length________M 3. Space distance between columns:________M 4. Eave high__________M 5. Brick wall or concrete wall high(if any)_________M 6. Roof slop grade___________(°or%) 7. Ventilation: 1)no 2)normal 3)natural 4)ventilator 8. Wall and roof: 1) EPS sandwich panel 2)PU panel 3)rock wool panel 4) steel sheet thickness:__________________ 9. Door: 1)sandwich panel sliding door 2)rolling door size:__________________ 10. Window: 1)aluminium window 2) PVC window size :_____________________ 11. Lighting: 1)skylight board 2)thickness:__________ 12. Draining: 1)natural draining 2)gutter 13. Crane: 1)yes 2)no 3)capacity_____T
