High Quality Customized Fabrication Prefab Light Structure Steel for Workshop Warehouse

Different types and sizes according to customers needs, large or small Material detailsSpecifications

Specifications	1) Different sizes:
	MOQ is 100m2, width X length X eave height
	2) Different types:
	Single slope
	double slope
	Sing span
	double-span
	Multi-span
	single floor, double floors!
	3) Different Bases:
	Cement and steel foundation bolts
	4) Different Columns and beams:
	Material Q345(S355JR)or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section
	5) Different bracings:
	X-type or V-type or other type bracing made from angle, round pipe, etc
	6) Different Purlins:
	C or Z type: Size from C120~C320, Z100~Z200
	7) Different roof and wall panel:
	Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm
	8) All accessories:

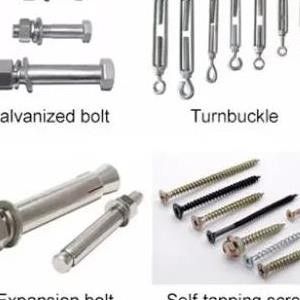

	Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc
	9) Surface:
	Two layers of Anti-rust Paint
	10) Packing:
	flat packing, main structure packed in an integrated rack made by H beams, other parts packed in parcels, all loaded into 40FT HQ.
	Safe and easy handle.

Our Advantages 1. wide span: single span or multiple spans, the max span is 36m without middle column. 2. Low cost and maintenance: unit price range from USD30/m2 to USD70/m2 according to customers request. 3.Fast construction and easy installation: time saving and labor saving, all the items are factory-made,pre-cut, pre-drilled,pre-painted. 4.Reduced construction waste,long using lifespan: up to 50 years. 5. Nice appearance. 6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

How to ensure your quality?

Steel Structure Process: 1. Prepare raw materials : cut steel plate or use internation size H section steel and angle steel, round tube, round steel, square tube etc.; 2. Assembly and welding: our welders will follow the drawings to assemble the steel members and weld them together as a entire beam/column/brace and so on; (Our quality inspector will check the steel pieces after finish welding, this is the first quality check) 3. Sand blast : After finish welding and polishing, our sand blast effect can reach internation 2.5 high grade, very good for resist rust; (Secondary quality check) 4.Paint : Within 2 hours after sand blast, all the steel members should be paint. Client can choose any color and any brand of paint. (The third quality check) 5. Inspect the goods by client : After we finish a part of fabrication work, we will invite clients to check the goods before we pack the steel frame. 6.Packing and loading : If clients require us to load the goods by close containers, we will pack the steel structure members one by one on the steel skid and tie the whole steel package well. (The fourth quality check )

Design parameters---need to be provided:

Design Parameters	1) Live load on roof (KN/M2)
	2) Wind Speed (KM/H)
	3) Snow Load (KG/M2) - If Applicaple
	4)Earthquake load - If Applicable
	5) Doors and Windows
	6) Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure
	7)Size: width X length X eave height, roof slope
	8)Or your idea!

certification: Visit us: In 2012,we started foreign trade activities.Our products sell well across the world,like Southeast Asia,South America,Oceania,Europe,Africa and other regions. About us: Qingdao Xinmao ZT Steel Construction Co.,LTD company is one of the well-established company experienced and specialized in prefab light steel structure, is Co-invested by Shandong Qingyun Xinda Color Steel Structure Engineering Co., Ltd., which is founded in the year of 2003. Our company is a high-tech production-oriented enterprise with a complete system for steel structure production and installation, the company has obtained the international quality certificate of ISO9001 and Steel Structure Construction Qualification Certificate Grade II. We have lots of construction projects home and abroad, our sales volume in Philippine market is NO.1, we are the best and the most reliable supplier in this area, and also we are the top 3 supplier in Pakistan and Sudan.There still are projects in Dubai, Oman,Uzbekistan,Nigeria,Mozambique and other countries. Also, our company is recruiting global agents, although there are some agents in some countries already, there are still much more chances to be our agents all over the world, welcome you to join us with our utmost and warm expectation. LILYQingyun Xinmao Steel structure Co., Ltd.Address:on the west of State Road 205Website:china-steel structure.en.made-in-china.com
