Light Weight Poultry Farm Building Shed House Broiler House Building

light weight poultry farm building shed house broiler house building

Product Description

1. Design Option:

A. We design as the request from clients usually.

B. However, the Normal Width of Poultry farm as 12-22m, the most economic width as 16m. Length usually max. 160m. And Height as 2.2-2.5m or 2.5-4.5m

For example, the Poultry farm with 10,000 broilers, the building usually 12X60m or 16X45m. 40,000 broilers, the building size 16m X 140m will be perfect choice.

2. Types of poultry farm building:

A: Open wall type. It can save the cost of shed, but can not control the temperature very well.

B: Half open wall type : you can open the curtain, when climate is good. You can close the curtain, when climate is not good. But this tpye chicken farm building can not be used in cold area.

C: Enclosed wall type: This design can control temperature well and reduce the harm of climate changing to chickens. But the cost is higher.

Characteristic of Qingdao SuperM Steel Poultry House: 1. Factory of steel structure more than 12 years exporting experience. 2. Multi design softwares---Auto CAD, Tekla, PKPM, 3D3S, Vertex, Sketchup, etc. 3. Free design---construction drawing, steel structure drawing, shop drawing, guide installation drawing. 4. Quality Control--CE, ISO, SGS, BV, etc. 5. Guilde installation service. 6. Expert installation team. 7. One stop shop for all steel structure projects. 8. Exporting to over 40 countries serving more than 80 customers.

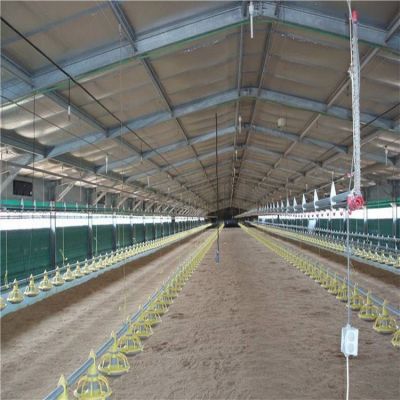

3. Poultry House Equipment Details: 1). Main feed delivery line (1 )Main feed delivery system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a feed level sensor. (2) Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding. Different specifications of silos are alternative to choose according to the daily consumption. 2). Automatic pan feeding line system There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery. The motor will start working and deliver feed when the feed pan (with sensor) lacks feed and will stop working when the feed pan (with sensor) is full of feed. 3). Automatic nipple drinking line system This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier. 4). Cooling pad system Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on one side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation absorbs a lot amount of heat. The height of cooling pad is 1.5-2.2m, the area of cooling pad in chicken house is about 6-8 times than the fans. 5). Ventilating system The main parts of ventilation system is the big fan and small fan. They are controlled by the control system. The NO. of the fans to run was decided by the temperature of the poultry house. About 200m2 need 1 big fan and 15-20m need a small fan, this is the standard to design the quantity of fans in chicken house.

Our Advantages

1. We design different types and sizes building according to customers needs, large or small, wide span: single span or multiple spans, the max span is 36m without middle column.

2. We proposal with low cost and maintenance: unit price range from USD25/m2 to USD50/m2 according to customers request.

3. The steel structure building fast construction and easy installation: time saving and labor saving, all the items are factory-made,pre-cut,pre-welded, pre-drilled,pre-painted or HDG in advance for saving cost and time.

4. Reduced construction waste, long using lifespan: up to 50 years.

5. We are using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc software to design different buildings according to request of Clients. We service clients from design, produce, delivery and election.

We can design factors with Max. Wind 280KM/H, Earthquake Class C and Roof Snow Load 200kg/SQM.

6. Nice appearance and , Earthquake Resistance, Sound Insulation, Heating Insulation treatment.

7. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

Factory Overview

Factory Established in 2008

Company Area more than 40,000 SQM

Workshop More than 25,000 SQM

Production Line:

2 Sets CNC Flame Cutting Machines

5 Lines for builtup H profiles

3 Lines for C Girt or Z purlins

3 Lines for Corrugated Wall or Roof Metal Sheet

3 Lines for Sandwich Panel Sheet---Wall, Roof, EPS, Glasswool, Rockwool, XPS, etc

1 Set Shot Blasting Machine for Painting Pretreatment.

Quality Control

1. QC processing:

1. Every 3 months meeting for Quality Audit to solve the weakness during processing and procedures

2. Every 6 months meeting for employee training.

3. Producing as to the International Steel Structure Standard with ISO 9001 Quality Control System

4. Each project, every 6 months, connecting with clients for feedback and complaints, then improve the quality control actions.

5. Quality inspection report for every process during production. Ensure 100% good quality products. 2. Company Certificate of us:

After Sales Service

1. Offer guide installation service. 2. One-stop shop steel structure building service 3. Free design service. 4. Expert oversea installation team service.

Here are some successfully projects by us:

Packaging & Shipping

Our Customers

We serving the customer from UK, Poland, Luxemburg, France, Mozambique, Reunion Island, Botswana, Zimbabwe, Angola, Dubai, UAE, Russia, Singapore, Australia, New Zealand, Indonesia, Fiji, Sri Lanka, USA, Canada, Chile, Saint Lucia, Mexico, Chile etc. more than 40 countries in the past 10 years.

FAQ

Q:Can you provide product catalog and quotation?

A: It is better if you can provide drawings(PDF or CAD),we will give you complete your drawings offer. or

We can design as the request from you, then proposal.

Q:what is you used drawing format?

A: PDF or DWG as AUTO CAD file

Q:What is the minimun order quantity?

A:No MOQ limited.

Q:What is your packing?

A:Standard export package for container transportation by sea and can be packed as customers requested.

Q:How long is the delivery time?

A:According to project situation, usually within 30 days after receiving deposit.

Q: Do you offer guide installation service?

A: yes, we can. we can send engineer to your project site for guide installation or arrange the installation team to help erecting the building if necessary. .

Q: are you factory or trading company?A: We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us
